State Diagram Updated 8/23/2026

Process State Diagram

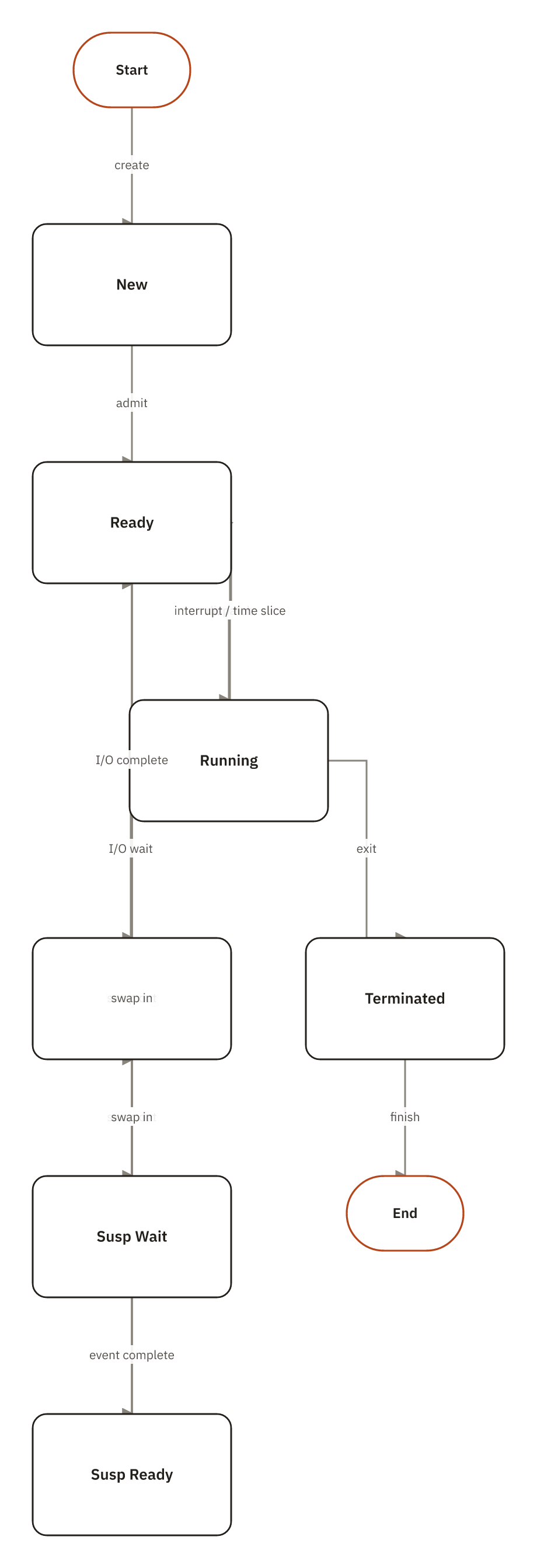

State diagram of a process lifecycle, showing transitions from start and new through ready, running, waiting, suspended states, and termination. It highlights how a process moves between execution, blocking, suspension, and exit.

process statesstate diagramoperating systemsprocess lifecyclescheduling
9 nodes 13 connections

How can I use this state diagram?

Download the Process State Diagram as a PNG or SVG, or open it in the studio to edit your own copy. To draw a similar state diagram from a description, use the state diagram generator; for notation and a step-by-step walkthrough, read how to draw a state diagram; and browse more state diagram examples for related layouts.
