Online Shopping System ER Diagram

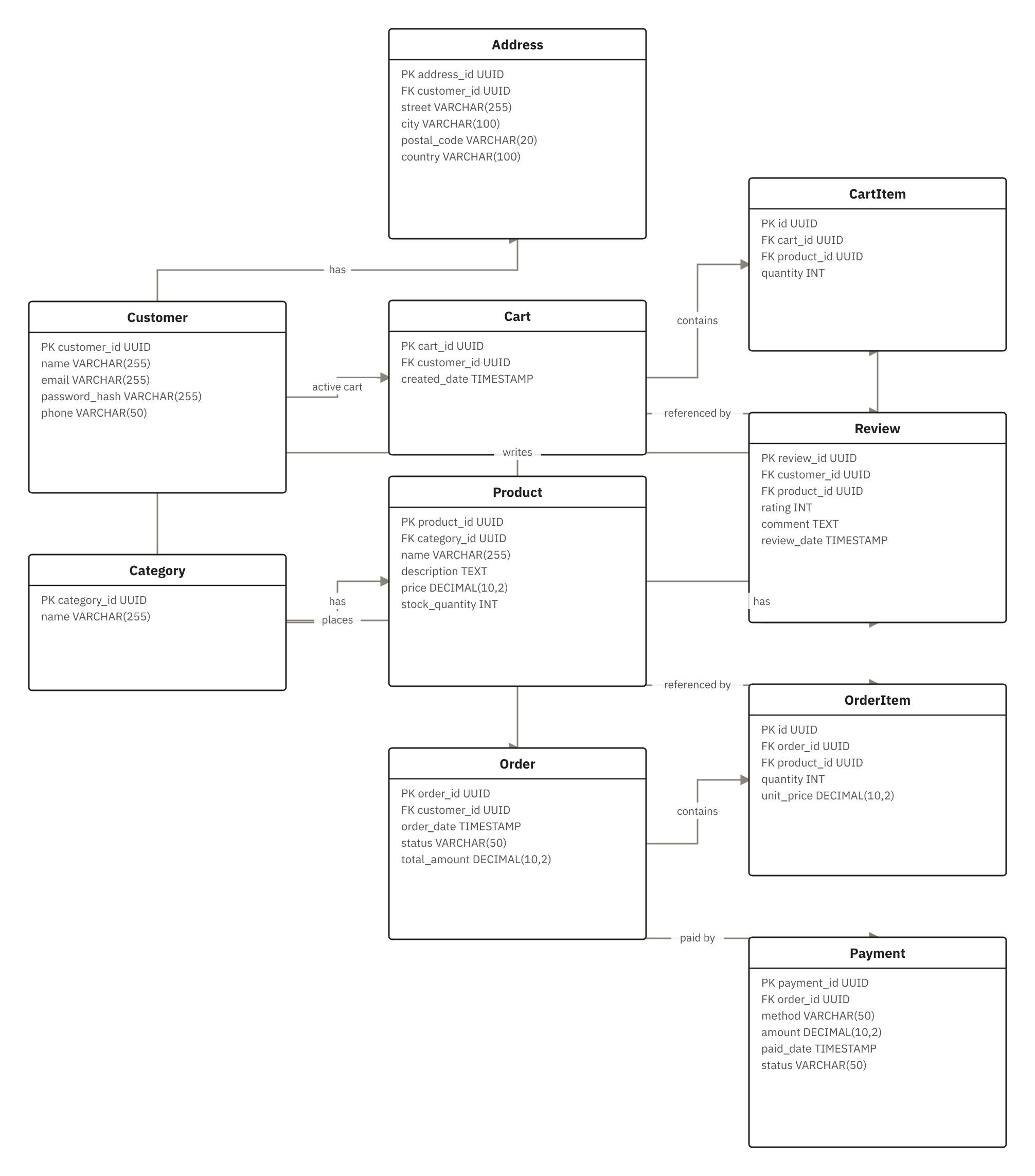

Entity-relationship diagram for an online shopping system showing customers, addresses, products, categories, carts, orders, payments, reviews, and line items, with relationships between shopping, checkout, and order records.

entity relationship diagrame-commerceonline shoppingorder managementcartdatabase design
10 nodes 11 connections

How can I use this er diagram?

Download the Online Shopping System ER Diagram as a PNG or SVG, or open it in the studio to edit your own copy. To draw a similar er diagram from a description, use the ER diagram generator; for notation and a step-by-step walkthrough, read how to make an ER diagram; and browse more ER diagram examples for related layouts.
