Food Delivery Platform ERD

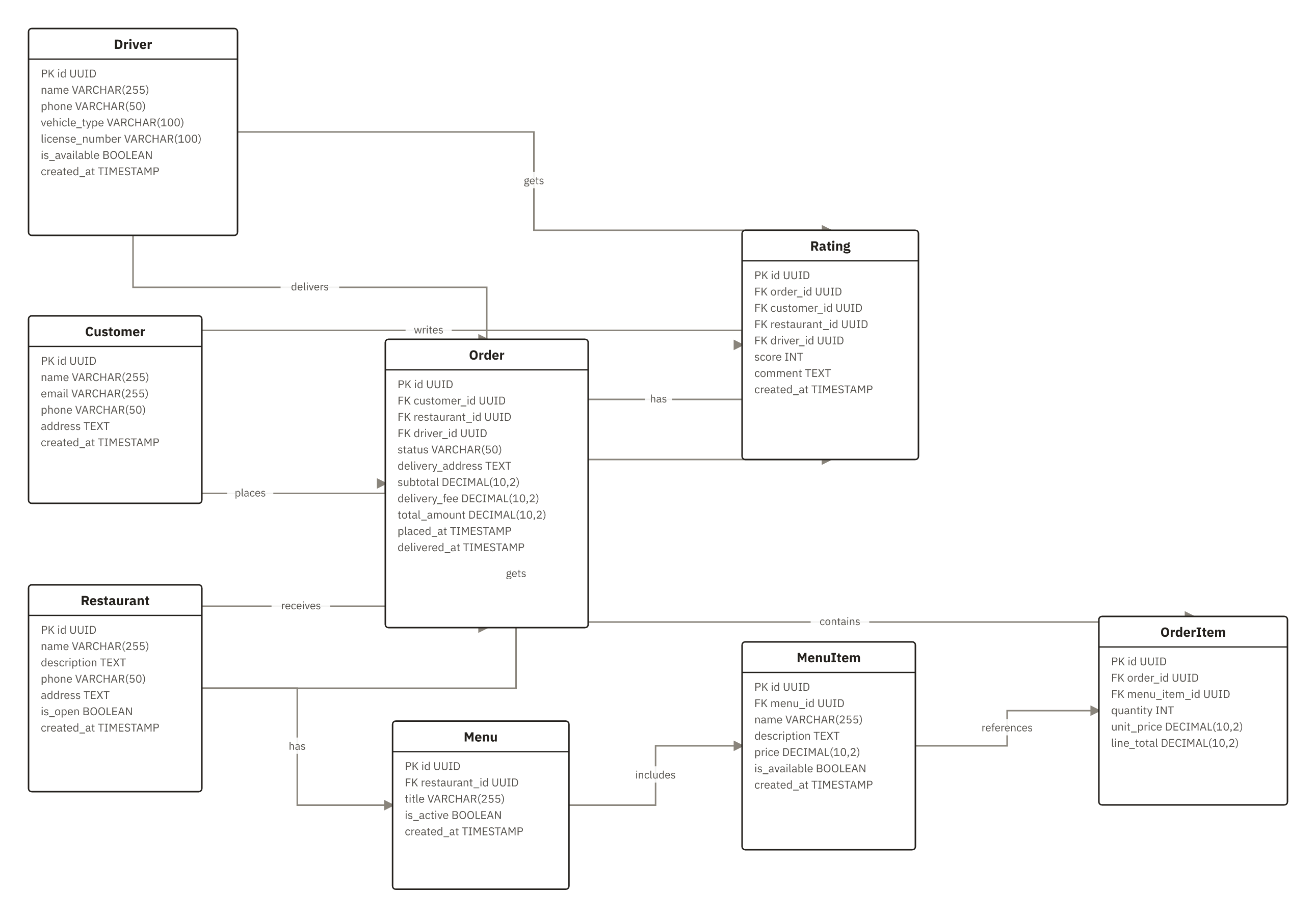

Entity-relationship diagram for a food delivery platform, showing customers, restaurants, menus, menu items, drivers, orders, order items, and ratings. It maps how orders connect users, merchants, delivery, and feedback data.

entity relationship diagramfood deliveryordersrestaurantsdelivery driversratings
8 nodes 11 connections

How can I use this er diagram?

Download the Food Delivery Platform ERD as a PNG or SVG, or open it in the studio to edit your own copy. To draw a similar er diagram from a description, use the ER diagram generator; for notation and a step-by-step walkthrough, read how to make an ER diagram; and browse more ER diagram examples for related layouts.
