ER Diagram Updated 5/22/2026

Analytics Platform ERD

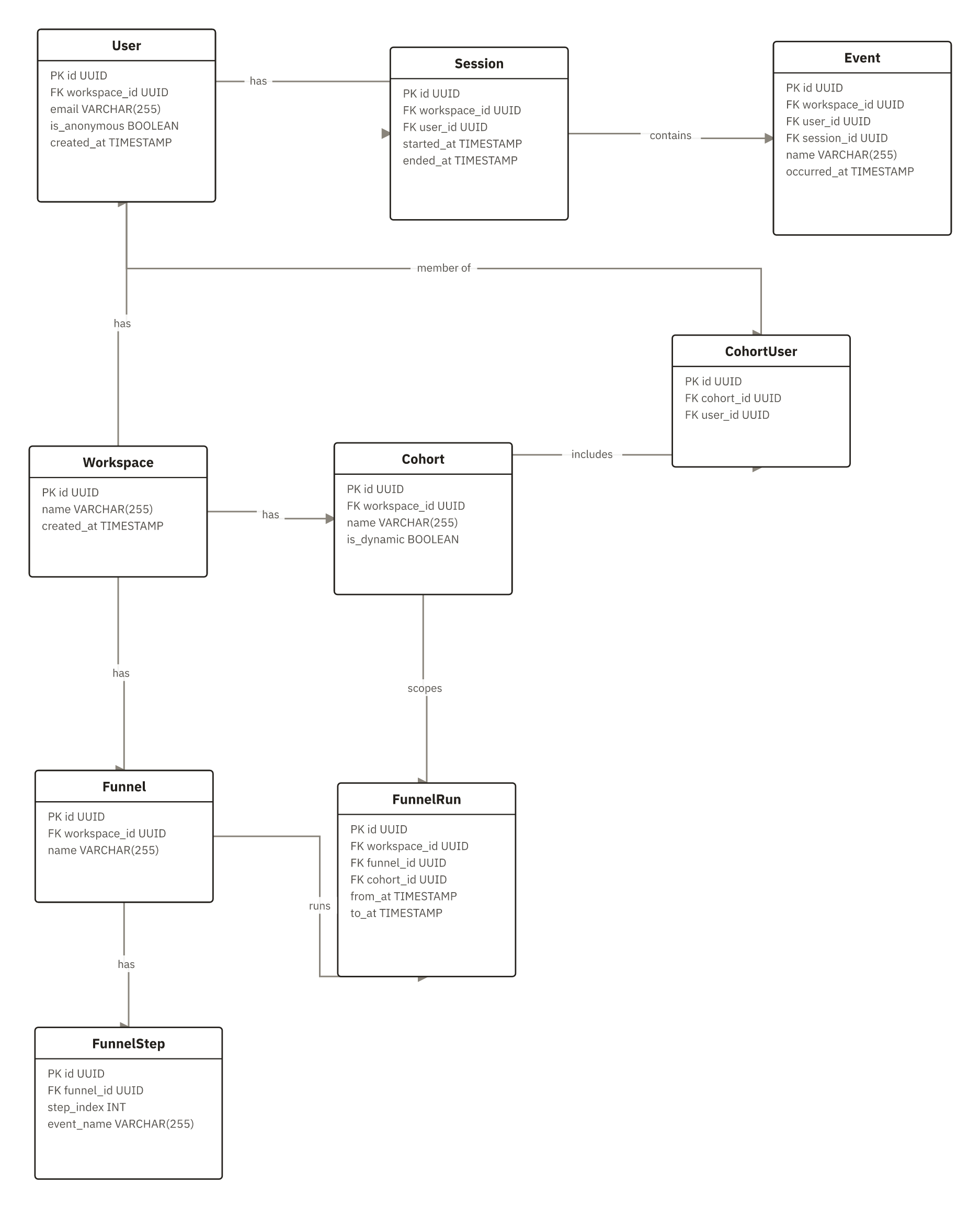

Entity-relationship diagram of an analytics platform showing how workspaces relate to users and sessions, and how sessions generate events. It also models funnels with steps and runs, plus cohorts and cohort membership.

erdanalyticseventsfunnelscohortsuser-sessions
9 nodes 10 connections

How can I use this er diagram?

Download the Analytics Platform ERD as a PNG or SVG, or open it in the studio to edit your own copy. To draw a similar er diagram from a description, use the ER diagram generator; for notation and a step-by-step walkthrough, read how to make an ER diagram; and browse more ER diagram examples for related layouts.
